Water Softener Plant

What is a Water Softener Plant?

A Water Softener Plant is a water treatment system used to remove hardness-causing calcium and magnesium ions from water. It uses ion exchange resin in sodium form. As hard water passes through the resin bed, calcium and magnesium are exchanged with sodium ions, producing softened water. Terraquaer Venture Pvt. Ltd. designs and supplies water softener plants for boiler feed pretreatment, cooling tower makeup, process water, laundry, hotels, hospitals, manufacturing units, RO pretreatment and utility water applications across Ahmedabad, Gujarat and pan-India projects.

Why is a Softener Required?

A softener is required when water hardness can cause scaling, poor heat transfer, boiler problems, cooling tower scaling, RO membrane scaling, soap wastage, laundry issues, process quality variation or equipment maintenance problems. Calcium and magnesium salts can form hard deposits on heat transfer surfaces, pipes, valves and membranes. Softening helps reduce scale potential and improves reliability of downstream systems.

When Should a Water Softener Be Installed?

A water softener should be installed when raw water hardness is above acceptable limits for the intended use. It is commonly selected before boilers, cooling towers, RO plants, hot water systems, laundry systems, process equipment and utility networks. It is also used where hardness leakage must be controlled to meet plant operating requirements. Final selection depends on hardness level, flow demand, operating hours, treated water hardness target and regeneration practicality.

Where is a Softener Used?

Water softener plants are used in hotels, hospitals, laundries, residential societies, commercial buildings, educational institutions, food and beverage units, dairy plants, textile units, pharmaceutical plants, chemical plants, automobile units, engineering units, boiler houses, cooling tower systems, RO pretreatment skids and industrial manufacturing facilities. They are usually installed after filtration and before equipment that requires low-hardness water.

How Does a Water Softener Work?

During the service cycle, hard water enters the pressure vessel and passes through sodium-based cation exchange resin. Calcium and magnesium ions are captured by the resin, while sodium ions are released into the water. When the resin becomes exhausted, hardness leakage increases and regeneration is required. During regeneration, brine solution from the brine tank passes through the resin bed. Sodium from the brine replaces the captured calcium and magnesium, restoring resin capacity. After brine draw, slow rinse and fast rinse, the softener returns to service.

Technical Overview and Design Factors

Softener design depends on flow rate, peak flow, operating hours, inlet total hardness, calcium hardness, magnesium hardness, TDS, iron, manganese, turbidity, chlorine exposure, resin exchange capacity, resin volume, vessel size, service flow rate, regeneration frequency, brine concentration, salt dose, rinse requirement, hardness leakage target, operating pressure, vessel MOC and downstream application. Terraquaer does not assume final design values without reviewing actual water analysis and operating requirements.

Major Components and Scope Elements

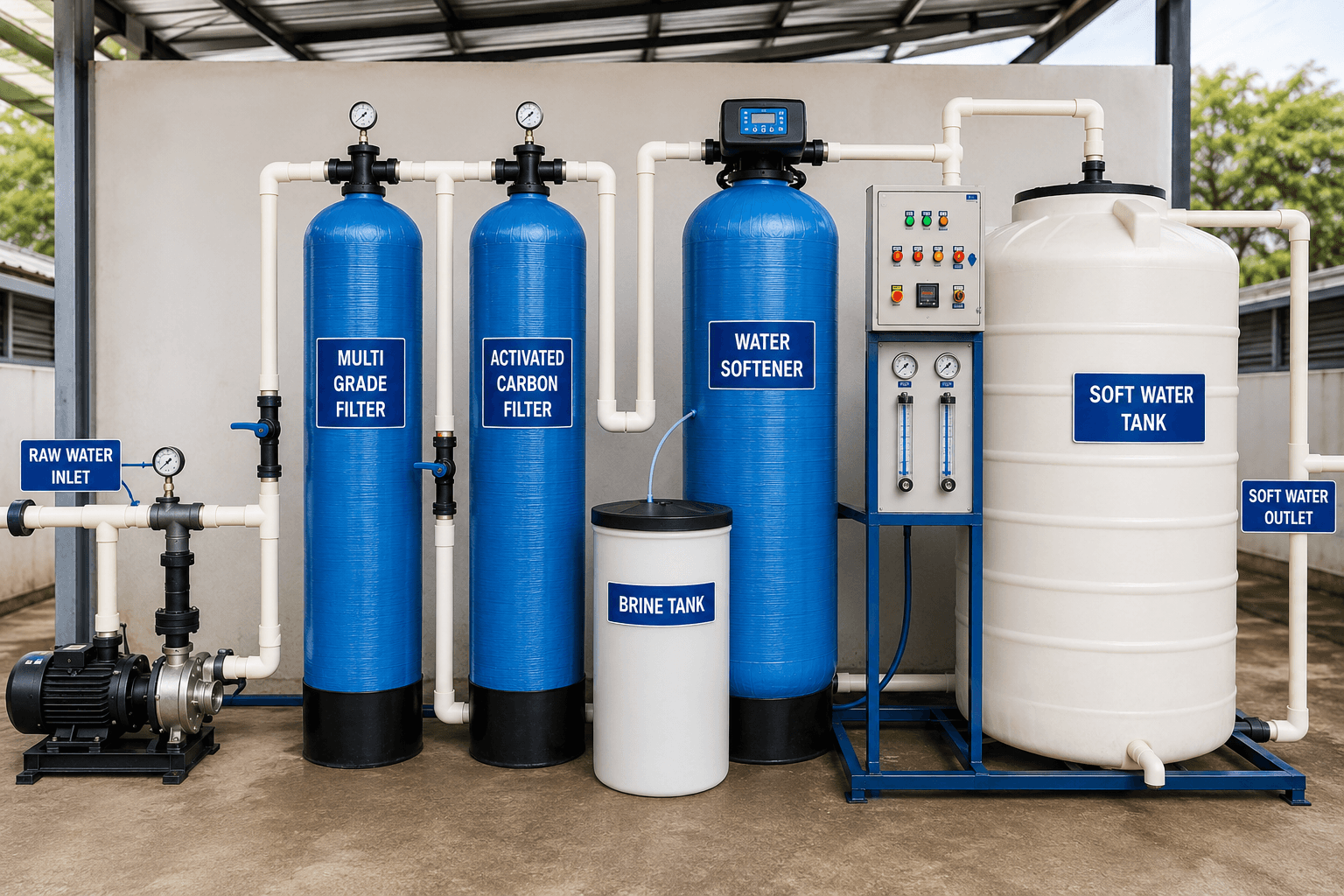

A complete water softener plant may include pressure vessel, cation exchange resin, gravel support where required, top distributor, bottom collector, brine tank, salt grid, ejector or brine draw system, multiport valve or separate valve nest, inlet and outlet piping, regeneration piping, drain line, sampling points, pressure gauges, hardness testing provision, flow meter, control panel, automatic regeneration controls and bypass arrangement. Systems can be manual, semi-automatic, automatic time-based or automatic flow-based depending on project needs.

Resin, Regeneration and Hardness Leakage

Ion exchange resin is the core of the softener. Resin quality, resin volume, service flow and regeneration setting directly affect treated water hardness. Regeneration with brine must be set correctly to restore the resin without excessive salt or water wastage. Hardness leakage means small amounts of hardness passing into treated water, especially near the end of the service cycle or when regeneration is poor. Terraquaer selects resin and regeneration settings based on hardness load, treated water requirement and operating pattern.

Applications in Boiler, Cooling, RO and Process Water

In boiler feed pretreatment, softeners reduce hardness to control scale formation before boiler or further polishing systems. In cooling tower makeup, softened water helps reduce scaling tendency. In RO pretreatment, softeners reduce calcium and magnesium load to protect RO membranes where suitable. In laundry, softened water improves washing performance and reduces soap consumption. In hotels, hospitals and manufacturing units, softeners support hot water systems, utilities, process water and equipment protection.

Operation and Maintenance Requirements

Softener operation requires monitoring of inlet hardness, outlet hardness, service flow, pressure drop, brine tank salt level, regeneration frequency, brine draw, rinse quality and valve operation. Maintenance includes resin health checks, resin top-up or replacement, brine tank cleaning, injector cleaning, multiport valve servicing, leakage checks and hardness testing. AMC support helps maintain consistent soft water quality and prevent downstream scale issues.

Terraquaer’s Engineering and EPC / EPCC Scope

Terraquaer supports water softener projects through water analysis review, hardness load calculation, resin selection, vessel sizing, brine tank sizing, regeneration setting, valve selection, piping layout, automation, equipment selection, procurement, supply, installation, commissioning, operator guidance, troubleshooting, resin replacement planning, AMC and maintenance support. Terraquaer’s approach focuses on practical hardness control, serviceability, salt efficiency and downstream equipment protection.

Terraquaer Legacy and Capability Statement

Terraquaer Venture Pvt. Ltd. supports clients with practical, reliable and maintainable water and wastewater treatment solutions. Terraquaer’s strength lies in understanding actual site conditions, wastewater characteristics, client objectives, compliance requirements, lifecycle cost and long-term operation challenges before recommending a treatment system. As an EPC / EPCC environmental engineering company, Terraquaer helps clients from concept development to commissioning and long-term operation support.

Buyer Decision Guide

Before selecting a water softener plant, buyers should review raw water hardness, flow rate, peak demand, operating hours, treated water hardness target, application, resin volume, regeneration method, salt availability, brine disposal, automation need, vessel MOC, installation space and AMC support. Terraquaer helps clients select a softener configuration suited to actual hardness load and operating conditions.
