Micron Cartridge Filters - MCF

What are Micron Cartridge Filters - MCF?

Micron Cartridge Filters, commonly called MCF, are fine filtration units used to remove small suspended particles from water before sensitive downstream equipment. They use replaceable cartridges installed inside a cartridge housing. The cartridge micron rating defines the approximate particle size the filter is designed to retain. Terraquaer Venture Pvt. Ltd. supplies micron cartridge filters for RO pretreatment, UF protection, UV protection, water treatment, wastewater reuse, process water and equipment protection applications across Ahmedabad, Gujarat and pan-India projects.

Why is an MCF Required?

An MCF is required to protect downstream equipment from fine particles that may pass through upstream filters. It is especially important before RO membranes, UF modules, UV systems, spray nozzles, instruments, process skids and polishing systems. Fine particles can cause membrane fouling, cartridge choking, nozzle blockage, poor UV transmittance, equipment wear and product quality issues. MCF acts as a practical final guard filter before critical treatment or process stages.

When is a Micron Cartridge Filter Installed?

A micron cartridge filter is installed when fine particle removal is required after pressure sand filtration, dual media filtration, activated carbon filtration, ultrafiltration or other pretreatment steps. It is commonly installed immediately before RO high-pressure pumps and membranes, before UV disinfection, before process equipment, before packaged water filling lines and before final polishing systems. The selected micron rating depends on the downstream equipment tolerance and inlet water quality.

Where is MCF Used?

MCF units are used in RO pretreatment, water treatment plants, wastewater reuse plants, process water systems, packaged drinking water plants, pharmaceutical water systems, food and beverage utilities, dairy plants, chemical process water, cooling tower makeup, boiler feed pretreatment, hotels, hospitals, institutions, commercial buildings and industrial manufacturing facilities. They are usually installed in line after upstream filtration and before the equipment that needs protection.

How Does a Micron Cartridge Filter Work?

Water enters the cartridge housing and passes through one or more filter cartridges. Particles larger than the selected micron rating are retained in or on the cartridge media, while filtered water flows to the outlet. As particles accumulate, pressure drop across the cartridge increases. Once the pressure drop reaches the replacement limit or treated water quality declines, the cartridge must be replaced. Unlike backwash filters, most cartridge filters are disposable or replaceable elements rather than permanently backwashed media beds.

Technical Overview and Design Factors

MCF selection depends on flow rate, inlet turbidity, suspended solids, particle size, upstream filtration performance, required micron rating, cartridge diameter, cartridge length, number of cartridges, housing material, operating pressure, allowable pressure drop, temperature, chemical compatibility, sanitation requirement, replacement frequency and downstream equipment sensitivity. Terraquaer does not assume final selection without reviewing the application and protection objective.

Types and Sizes of Cartridge Filters

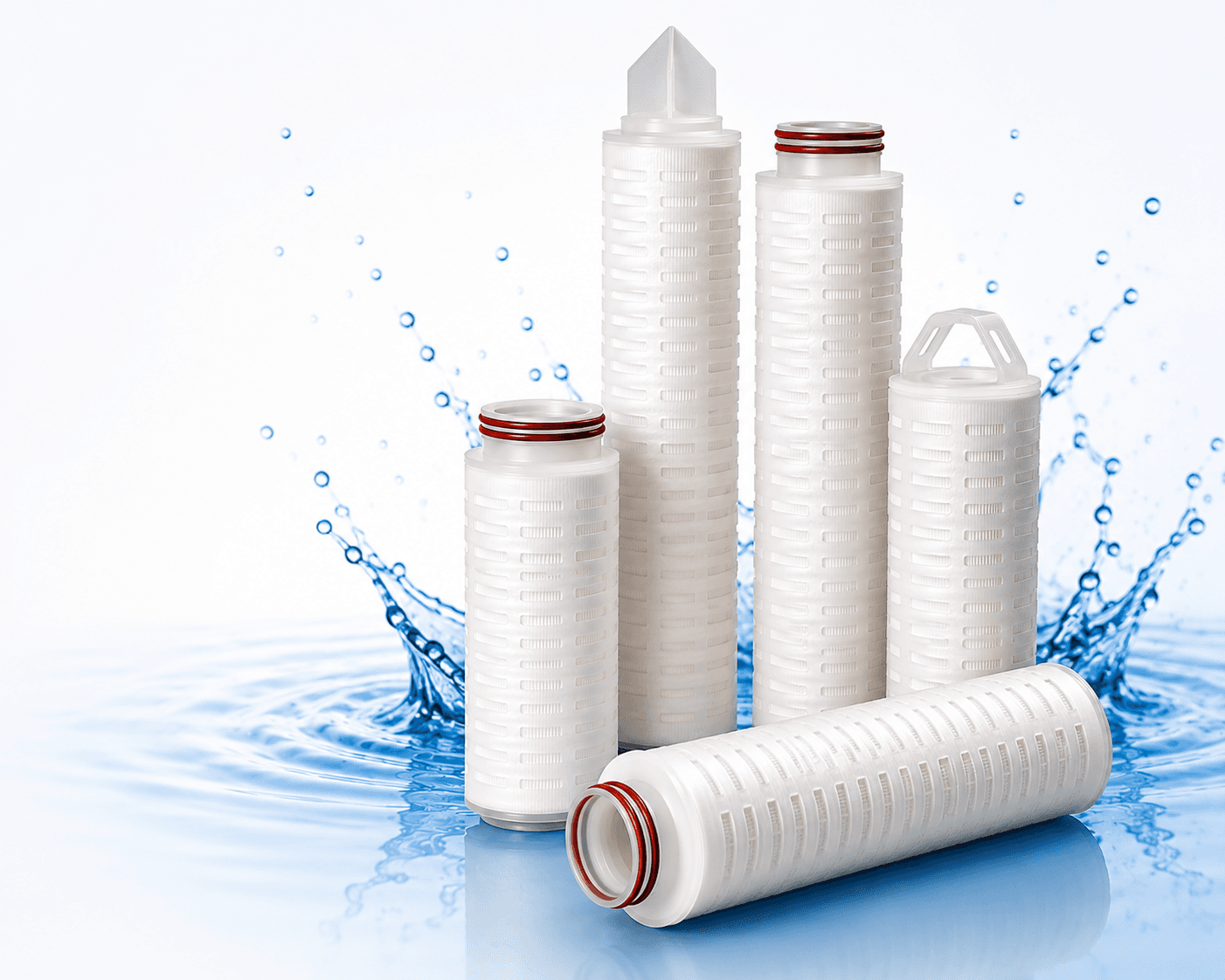

Common cartridge filter types include PP spun cartridges, PP melt blown cartridges, pleated cartridges, string wound cartridges, carbon block cartridges and high-flow cartridges. PP cartridges are widely used for RO pretreatment and general water filtration because they are practical and cost-effective for particle removal. Pleated cartridges provide higher surface area and can offer longer service life in suitable applications. String wound cartridges are used where depth filtration and dirt holding are useful. Cartridge sizes commonly include 10 inch, 20 inch, 30 inch and 40 inch lengths, with standard diameters and jumbo or big blue formats available for higher flow. High-flow cartridges are used where large flow must be handled with fewer elements.

MCF Housing Types and Ranges

MCF housings can be selected based on flow, pressure, water chemistry and maintenance access. Small single-cartridge housings are used for compact systems and point equipment protection. Big blue or jumbo housings are used for higher flow commercial systems. Multi-cartridge housings are used for industrial RO pretreatment, process water and large utility systems. High-flow cartridge housings are selected for large flow with reduced cartridge count. Housing MOC options may include PP, PVC, FRP, MS epoxy painted, SS 304 and SS 316 depending on pressure, corrosion risk, hygiene requirement and project specification. Terraquaer selects housing range based on flow, cartridge size, replacement access, pressure rating and downstream equipment criticality.

Micron Rating, Pressure Drop and Replacement Frequency

Micron rating must match the downstream protection objective. A 5 micron cartridge is commonly used before RO membranes, while other ratings such as 1, 10, 20, 50 or 100 micron may be selected for specific applications. Lower micron rating generally captures finer particles but may choke faster if upstream filtration is poor. Pressure drop is the difference between inlet and outlet pressure across the cartridge housing. Rising pressure drop indicates cartridge loading. Replacement frequency depends on inlet water quality, flow, cartridge size, dirt holding capacity, operating hours and allowed pressure drop.

Applications in RO, Water Treatment and Reuse

In RO pretreatment, MCF protects high-pressure pumps and membranes from fine particles. In water treatment plants, it provides polishing after sand, dual media or carbon filtration. In wastewater reuse systems, it helps protect downstream UF, RO, UV or process equipment. In process water systems, it protects valves, nozzles, instruments, heat exchangers and production equipment from particulate matter. MCF is also used in packaged water, pharmaceutical, food, dairy and utility applications where fine filtration is required.

Operation and Maintenance Requirements

MCF operation requires monitoring of inlet pressure, outlet pressure, differential pressure, flow and downstream water quality. Cartridges should be replaced when pressure drop reaches the recommended limit, flow reduces, outlet quality declines or scheduled maintenance is due. Operators should maintain spare cartridges, check O-rings and housing seals, clean housing internals during replacement and ensure correct cartridge micron rating and length are installed.

Terraquaer’s Engineering and EPC / EPCC Scope

Terraquaer supports micron cartridge filter requirements through application review, cartridge housing selection, micron rating selection, cartridge type selection, housing MOC selection, flow and pressure review, integration with RO, UF, UV and process systems, procurement, supply, installation guidance, spare cartridge supply, maintenance planning and troubleshooting. Terraquaer’s approach focuses on downstream equipment protection, serviceability and lifecycle reliability within complete treatment systems.

Terraquaer Legacy and Capability Statement

Terraquaer Venture Pvt. Ltd. supports clients with practical, reliable and maintainable water and wastewater treatment solutions. Terraquaer’s strength lies in understanding actual site conditions, wastewater characteristics, client objectives, compliance requirements, lifecycle cost and long-term operation challenges before recommending a treatment system. As an EPC / EPCC environmental engineering company, Terraquaer helps clients from concept development to commissioning and long-term operation support.

Buyer Decision Guide

Before selecting an MCF, buyers should review flow rate, particle load, inlet turbidity, downstream equipment, micron rating, cartridge type, cartridge length, housing MOC, operating pressure, pressure drop limit, replacement frequency, spare availability and maintenance access. Terraquaer helps clients select the cartridge filter arrangement that protects equipment without causing avoidable choking or maintenance burden.

Final Call to Action

Contact Terraquaer Venture Pvt. Ltd. for micron cartridge filter housing selection, micron rating selection, cartridge spare supply, maintenance planning and integration with RO, UF, UV, process water, wastewater reuse and complete treatment systems in Ahmedabad, Gujarat and across India.
