Dual Media Filter - DMF

What is a Dual Media Filter?

A Dual Media Filter, commonly called a DMF, is a pressure filtration system that uses two filtration media layers, typically anthracite and sand, supported by graded gravel. The top anthracite layer captures larger and lighter suspended particles, while the sand layer provides finer filtration below it. This media layering allows deeper particle capture and improved turbidity removal compared with a single-media filter in suitable applications. Terraquaer Venture Pvt. Ltd. supplies dual media filters for STP, ETP, WTP, RO pretreatment, cooling tower makeup and industrial utility water applications across Ahmedabad, Gujarat and pan-India projects.

Why is a Dual Media Filter Required?

A dual media filter is required when water contains turbidity, suspended solids and fine particles that need more effective depth filtration than basic single-layer filtration. It helps improve treated water clarity, protect downstream systems and polish water before reuse, RO, UF, activated carbon filtration, disinfection, cooling tower makeup or process use. In tertiary treatment, DMF can help reduce carryover solids from STP or ETP processes.

When is DMF Preferred Over a Pressure Sand Filter?

A DMF is preferred over a pressure sand filter when a longer service cycle, better solids loading capacity or improved turbidity removal is required and the feed water is suitable for layered depth filtration. The anthracite layer provides higher porosity at the top, allowing larger particles to be trapped without quickly blinding the fine sand layer. Final selection between PSF and DMF depends on inlet turbidity, particle size, flow rate, filtration velocity, outlet quality target, backwash availability, cost and maintenance preference.

Where is a Dual Media Filter Used?

Dual media filters are used in sewage treatment plants, effluent treatment plants, water treatment plants, RO pretreatment skids, cooling tower makeup systems, drinking water treatment, process water plants, industrial utility water systems, municipal water projects, hotels, hospitals, institutions, commercial buildings, residential societies and manufacturing facilities. DMF is often installed after clarification, biological treatment or chemical treatment and before ACF, UF, RO, UV or treated water storage.

How Does a Dual Media Filter Work?

During the service cycle, water enters the pressure vessel and is distributed evenly over the media bed. It first passes through the anthracite layer, where larger suspended particles are captured. It then passes through the sand layer, where finer particles are retained. Gravel support layers protect the underdrain system and support uniform flow. As solids accumulate, pressure drop increases and the filter requires backwash. Backwash reverses water flow to expand, clean and reclassify the media layers before the filter returns to service after rinsing.

Technical Overview and Design Factors

DMF design depends on flow rate, inlet turbidity, suspended solids load, particle size, filtration velocity, vessel diameter, media size, anthracite depth, sand depth, gravel support, bed expansion, flow distribution, service cycle duration, pressure drop, backwash flow rate, rinse requirement, operating pressure, vessel MOC, automation level and downstream quality target. Terraquaer does not assume final design values without reviewing water quality, application and site conditions.

Media Layering and Filtration Depth

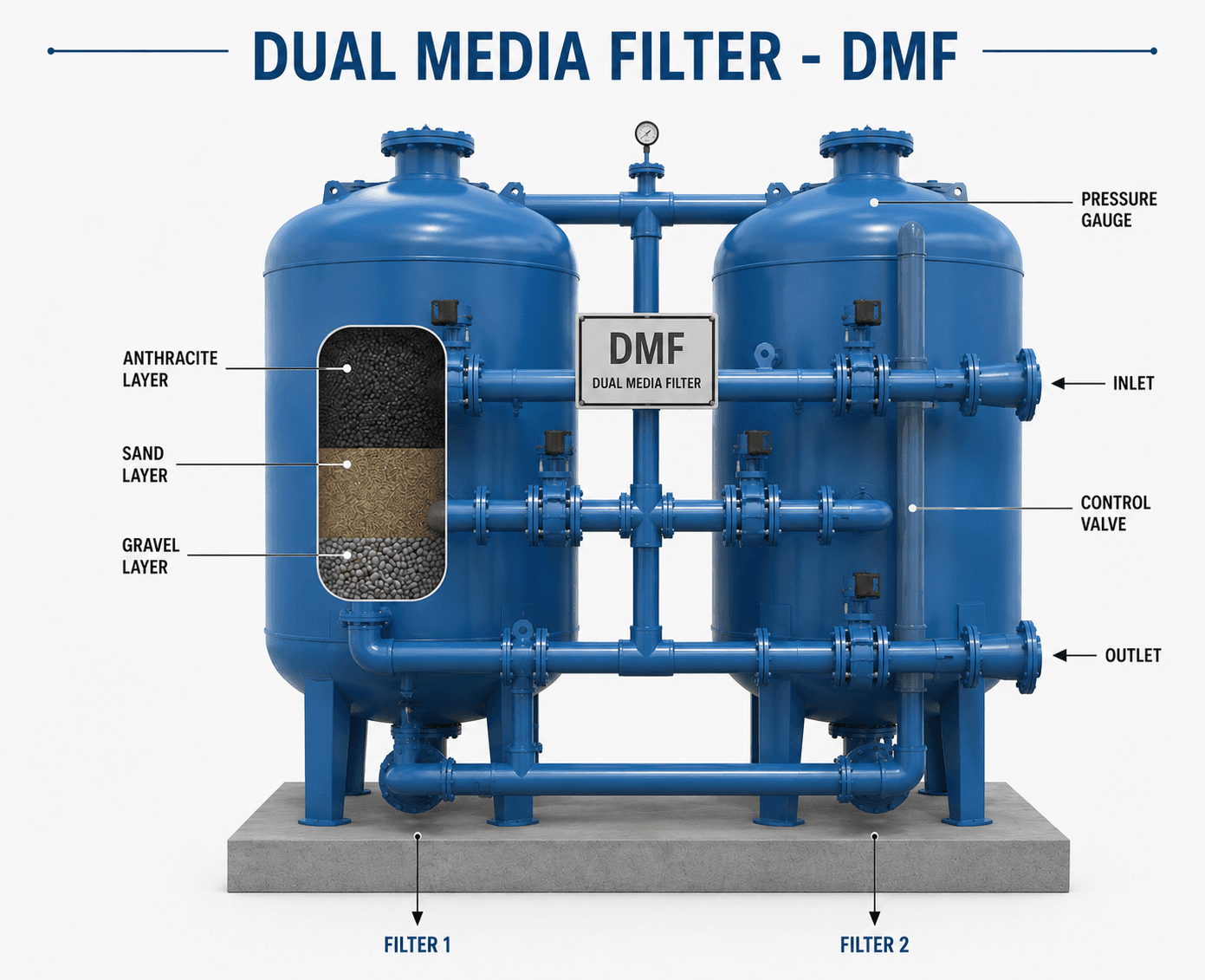

A dual media filter relies on correct media layering. Anthracite is usually placed above sand because it is lighter and has larger effective size. This creates a coarse-to-fine filtration path that captures solids through the bed depth instead of only on the top surface. Proper media depth, grain size, uniformity coefficient, gravel support and backwash rate are important to prevent channeling, mud ball formation, media mixing problems and poor filtration performance.

Major Components and Scope Elements

A complete dual media filter may include pressure vessel, top distributor, bottom collection system, strainers or laterals, anthracite media, sand media, gravel support media, face piping, inlet valve, outlet valve, backwash inlet valve, backwash outlet valve, rinse valve, drain valve, pressure gauges, sampling points, manual or automatic valve arrangement, skid frame, supports, access manhole, air release valve and instruments where required. The system can be supplied as manual, semi-automatic or automated based on project needs.

Applications in STP, ETP, WTP, RO and Utility Water

In STP tertiary treatment, DMF helps reduce suspended solids and turbidity before reuse or disinfection. In ETP tertiary treatment, it polishes clarified or biologically treated effluent before ACF, UF, RO or reuse. In WTP systems, DMF supports surface water and treated water polishing. In RO pretreatment, it reduces particulate loading before cartridge filtration and membranes. In cooling tower makeup and industrial utility water, DMF improves clarity and reduces fouling risk.

Operation, Backwash and Maintenance Requirements

DMF operation requires monitoring of inlet pressure, outlet pressure, pressure drop, outlet turbidity, flow rate and service cycle duration. Backwash is required when pressure drop rises, service time is completed or outlet turbidity increases. Correct backwash flow is important to expand and clean the bed without media loss. Maintenance includes checking valves, internals, gauges, media condition, channeling, backwash effectiveness, coating or lining condition and media replacement needs.

Terraquaer’s Engineering and EPC / EPCC Scope

Terraquaer supports dual media filter projects through flow and water quality review, vessel sizing, filtration velocity selection, media selection, media layering design, vessel MOC selection, internals selection, piping layout, valve arrangement, procurement, fabrication coordination, supply, installation, commissioning, backwash setting, operator guidance, troubleshooting, media replacement planning and maintenance support. Terraquaer’s approach focuses on practical filtration performance, serviceability and long-term operation.

Terraquaer Legacy and Capability Statement

Terraquaer Venture Pvt. Ltd. supports clients with practical, reliable and maintainable water and wastewater treatment solutions. Terraquaer’s strength lies in understanding actual site conditions, wastewater characteristics, client objectives, compliance requirements, lifecycle cost and long-term operation challenges before recommending a treatment system. As an EPC / EPCC environmental engineering company, Terraquaer helps clients from concept development to commissioning and long-term operation support.

Buyer Decision Guide

Before selecting a dual media filter, buyers should review flow rate, inlet turbidity, suspended solids load, outlet clarity target, filtration velocity, media depth, vessel MOC, backwash water availability, drain arrangement, automation need, available space, downstream treatment requirement and maintenance access. Terraquaer helps clients compare PSF and DMF options based on actual operating conditions.
